Intro
Length and angle can be freely adjusted, suitable for most fluids(liquids and gases), hose orifice can be changed as needed. Can be used for air or for water/oil supply to metal processing machinery.
Feature
- Made using superior POM plastic steel; is strongly resistant to oils and chemicals.
- Adjustable Coolant Hose is highly pliable; it holds its shape well and will not spring back.
- Bending hose will not reduce inner diameter; hose will not pinch or fatigue.
- Adjustable Coolant Hose will not damage cutting blades if there is accidental contact.
- Adjustable Coolant Hose dose not conduct electricity and is suitable for use on electrical discharge (EDM) machines.
- Five kinds of orifice inner diameter are available: 1/4", 3/8", 1/2", 3/4", 2 1/2".
- Adjustable Coolant Hose is designed for the transport of low-pressure fluids.
Hose Pressure and Flow Characteristics
| 1/4" SYSTEM | 2.0~3.0 kg/cm2 | 900 Liter/hour |
| 3/8" SYSTEM | 2.0~3.0 kg/cm2 | 1500 Liter/hour |
| 1/2" SYSTEM | 1.4~2.0 kg/cm2 | 1700 Liter/hour |
| 3/4" SYSTEM | 0.7~1.4 kg/cm2 | 1900 Liter/hour |
Recommended Usage
When using Adjustable Coolant Hose, changes in the situation may affect the maximum pressure. It is recommended that tests be performed whenever changes are made.
Thermal Characteristics
- Melting point: 165°C
- Maximum use temperature: 65°C
List of Suitable Fluids
Ordinary Adjustable Coolant Hoses are manufactured from acetal. Hose is available in dark blue and orange colors.
| ITEM | SUITABLE | 不UNSUITABLE |
| ALCOHOLS, ETHYL | O | |
| ACETONE | O | |
| COMMERCIAL DISHDETERGENTS | O | |
| GASOLINE | O | |
| GREASES | O | |
| LACQUER SOLVENTS | O | |
| OILS | O | |
| SODIUM HYDROXIDE | O | |
| INSECTICIDES | O | |
| BRAKE OILS | O | |
| ACIDS | X | |
| BASES, STRONG | X | |
| AMMONIUM HYDROXIDE(STRONG) | X | |
| HYPOCHLORITE LON SOLUTIONS | X | |
| SODIUM HYPOCHLORITE | X |

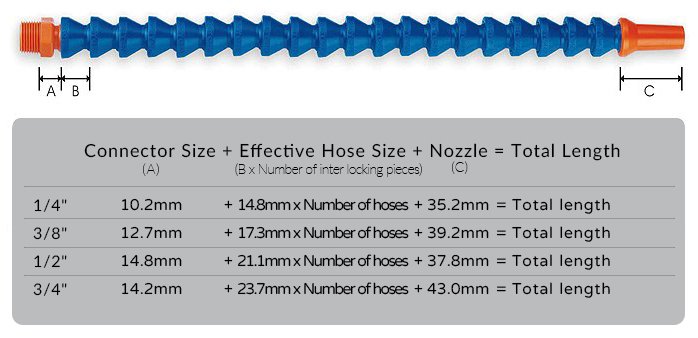

Adjustable Coolant Hoses Length Calculation Method Sample Calculations
