Adjustable Coolant Hoses
Length and angle can be freely adjusted, suitable for most fluids(liquids and gases), hose orifice can be changed as needed.
Can be used for air or for water/oil supply to metal processing machinery.
- Made using superior POM plastic steel; is strongly resistant to oils and chemicals.
- Adjustable Coolant Hose is highly pliable; it holds its shape well and will not spring back.
- Bending hose will not reduce inner diameter; hose will not pinch or fatigue.
- Adjustable Coolant Hose will not damage cutting blades if there is accidental contact.
- Adjustable Coolant Hose dose not conduct electricity and is suitable for use on electrical discharge (EDM) machines.
- Five kinds of orifice inner diameter are available: 1/4", 3/8", 1/2", 3/4", 2 1/2".
- Adjustable Coolant Hose is designed for the transport of low-pressure fluids.
|
| |
Hose Pressure and Flow Characteristics
|
| 1/4" SYSTEM |
2.0~3.0 kg/cm2 |
900 Liter/hour |
| 3/8" SYSTEM |
2.0~3.0 kg/cm2 |
1500 Liter/hour |
| 1/2" SYSTEM |
1.4~2.0 kg/cm2 |
1700 Liter/hour |
| 3/4" SYSTEM |
0.7~1.4 kg/cm2 |
1900 Liter/hour |
|
| |
Recommended Usage
|
| When using Adjustable Coolant Hose, changes in the situation may affect the maximum pressure. It is recommended that tests be performed whenever changes are made. |
| |
Thermal Characteristics
|
- Melting point: 165°C
- Maximum use temperature: 65°C
|
| |
List of Suitable Fluids
|
| Ordinary Adjustable Coolant Hoses are manufactured from acetal. Hose is available in dark blue and orange colors. |
| |
| ITEM |
SUITABLE |
UNSUITABLE |
| ALCOHOLS, ETHYL |
O |
|
| ACETONE |
O |
|
| COMMERCIAL DISHDETERGENTS |
O |
|
| GASOLINE |
O |
|
| GREASES |
O |
|
| LACQUER SOLVENTS |
O |
|
| OILS |
O |
|
| SODIUM HYDROXIDE |
O |
|
| INSECTICIDES |
O |
|
| BRAKE OILS |
O |
|
| ACIDS |
|
X |
| BASES, STRONG |
|
X |
| AMMONIUM HYDROXIDE(STRONG) |
|
X |
| HYPOCHLORITE LON SOLUTIONS |
|
X |
| SODIUM HYPOCHLORITE |
|
X |
|
| |

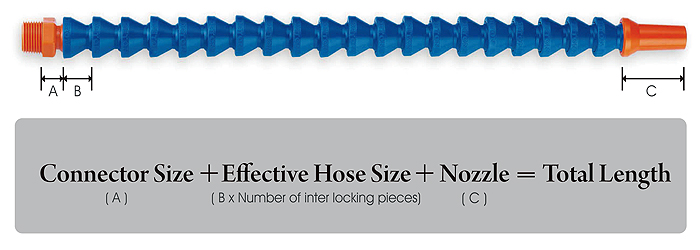

Adjustable Coolant Hoses Length Calculation Method Sample Calculations
|
| |
 |
| |
| 1/4" |
10.2 mm + 14.8 mm x Number of hoses + 35.2 mm = Total length |
| 3/8" |
12.7 mm + 17.3 mm x Number of hoses + 39.2 mm = Total length |
| 1/2" |
14.8 mm + 21.1 mm x Number of hoses + 37.8 mm = Total length |
| 3/4" |
14.2 mm + 23.7 mm x Number of hoses + 43.0 mm = Total length |
|
| |
