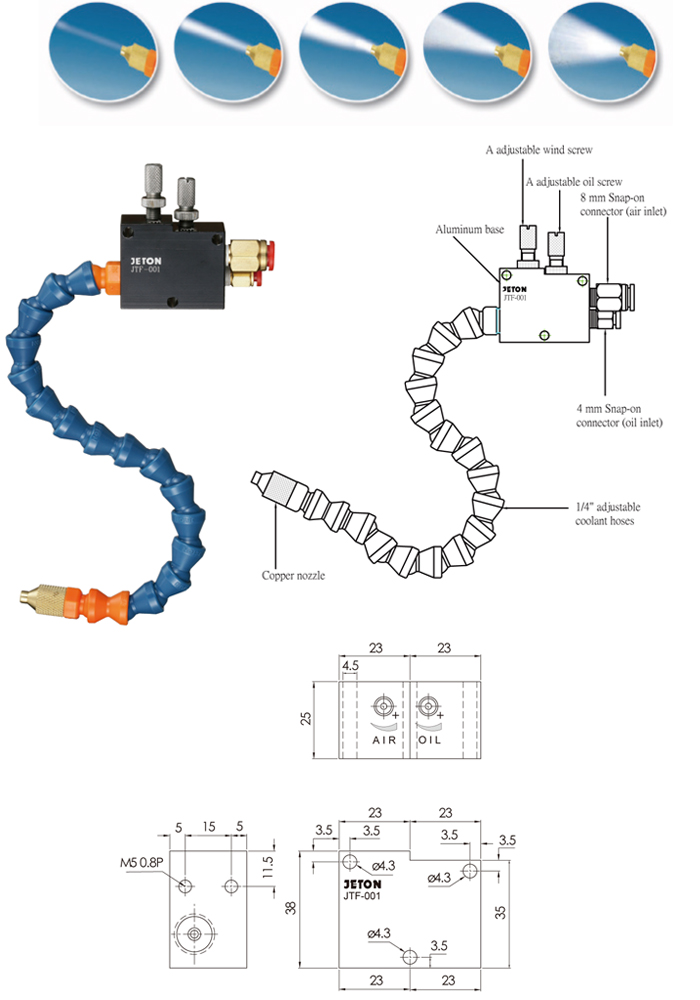

JTF-001 SPRAYING DEVICE
  1. Aluminum Base (1 set)
  2. 1/4" Adjustable Coolant Hoses (1 piece)
  3. A Spray Nozzle (1 piece)
  4. Applied to cool the micro-cutting under the high-speed.
  5. Two inlet ports, one for oil, and the other one for air.
  6. Adjust bolt to adjust the oil and air.
  7. The pressure exportation oil and air.


Recommended Pressures
Atmospheric pressure: 0.5~5 kg/cm2
Hydraulic pressure: 0.5~2 kg/cm2

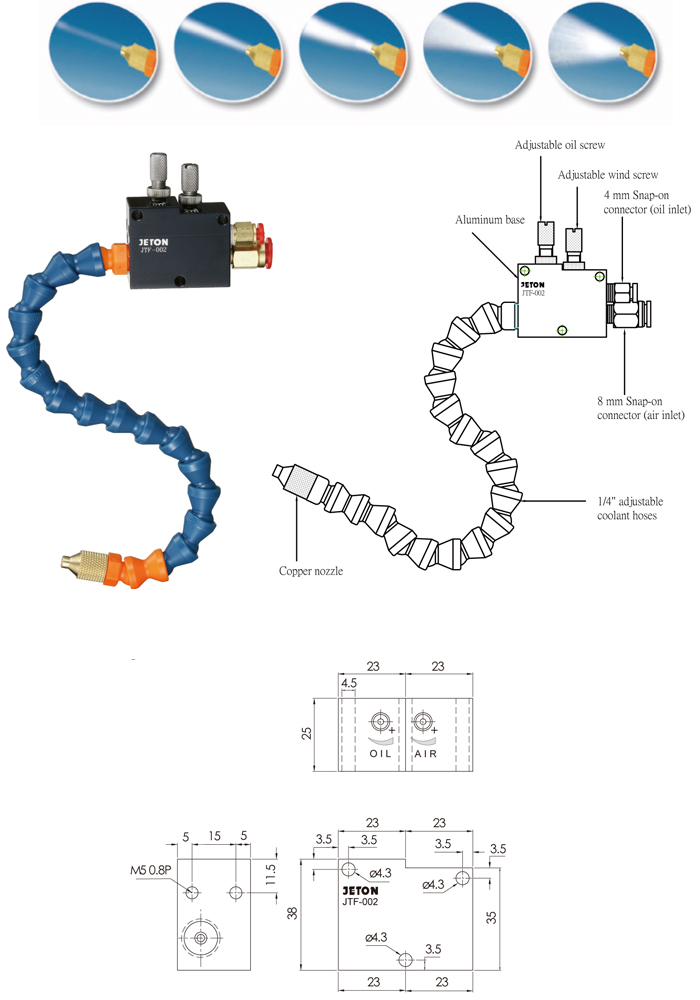

JTF-002 SPRAYING DEVICE
  1. Aluminum Base (1 set)
  2. 1/4" Adjustable Coolant Hoses (1 piece)
  3. A Spray Nozzle (1 piece)
  4. Applied to cool the micro-cutting under the high-speed.
  5. Two inlet ports, one for oil, and the other one for air.
  6. Adjust bolt to adjust the oil and air.
  7. The pressure exportation air arouses the oil into.


Recommended Pressures
Atmospheric pressure: 3.5~5 kg/cm2
Hydraulic pressure: 0
