產品介紹
介紹



  1. Easy adjustable angle.
  2. Accurate and steady positioning.
  3. Accurate and steady positioning.
  4. Get the "water" power ready to inject cutting tool, secure the cooling of the cutters in the machining course to extend the service life of cutters.
  5. Strong injection cooling system makes the filing strap won't wind around the lathe tool and secure the elements more accuracy and the surface more smooth during the machining process.

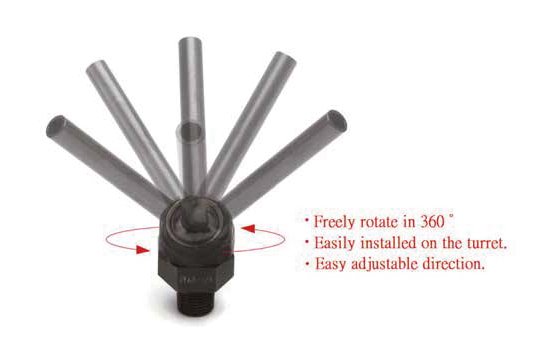

  6. Applied to spraying and cooling system and enector of each type of machine. Freely rotate in 360°
請左右滑動以下表格
共有 45 項產品
型號
規格
主要尺寸 (mm)
DWG 下載
JTASP
  • JTASP-1/8-10-4
  • 1/8''PT-Ф4*10L
  • JTASP-1/8-10-2
  • 1/8''PT-Ф2*10L
  • JTASP-1/8-10-1
  • 1/8''PT-Ф1*10L
  • JTASP-1/8-30-4
  • 1/8''PT-Ф4*30L
  • JTASP-1/8-30-2
  • 1/8''PT-Ф2*30L
  • JTASP-1/8-30-1
  • 1/8''PT-Ф1*30L
  • JTASP-1/8-50-4
  • 1/8''PT-Ф4*50L
  • JTASP-1/8-50-2
  • 1/8''PT-Ф2*50L
  • JTASP-1/8-50-1
  • 1/8''PT-Ф1*50L
  • JTASP-1/4-10-4
  • 1/4''PT-Ф4*10L
  • JTASP-1/4-10-2
  • 1/4''PT-Ф2*10L
  • JTASP-1/4-10-1
  • 1/4''PT-Ф1*10L
  • JTASP-1/4-30-4
  • 1/4''PT-Ф4*30L
  • JTASP-1/4-30-2
  • 1/4''PT-Ф2*30L
  • JTASP-1/4-30-1
  • 1/4''PT-Ф1*30L
  • JTASP-1/4-50-4
  • 1/4''PT-Ф4*50L
  • JTASP-1/4-50-2
  • 1/4''PT-Ф2*50L
  • JTASP-1/4-50-1
  • 1/4''PT-Ф1*50L
JTASN
  • JTASN-1/8-10-4
  • 1/8''NPT-Ф4*10L
  • JTASN-1/8-10-2
  • 1/8''NPT-Ф2*10L
  • JTASN-1/8-10-1
  • 1/8''NPT-Ф1*10L
  • JTASN-1/8-30-4
  • 1/8''NPT-Ф4*30L
  • JTASN-1/8-30-2
  • 1/8''NPT-Ф2*30L
  • JTASN-1/8-30-1
  • 1/8''NPT-Ф1*30L
  • JTASN-1/8-50-4
  • 1/8''NPT-Ф4*50L
  • JTASN-1/8-50-2
  • 1/8''NPT-Ф2*50L
  • JTASN-1/8-50-1
  • 1/8''NPT-Ф1*50L
  • JTASN-1/4-10-4
  • 1/4''NPT-Ф4*10L
  • JTASN-1/4-10-2
  • 1/4''NPT-Ф2*10L
  • JTASN-1/4-10-1
  • 1/4''NPT-Ф1*10L
  • JTASN-1/4-30-4
  • 1/4''NPT-Ф4*30L
  • JTASN-1/4-30-2
  • 1/4''NPT-Ф2*30L
  • JTASN-1/4-30-1
  • 1/4''NPT-Ф1*30L
  • JTASN-1/4-50-4
  • 1/4''NPT-Ф4*50L
  • JTASN-1/4-50-2
  • 1/4''NPT-Ф2*50L
  • JTASN-1/4-50-1
  • 1/4''NPT-Ф1*50L
JTASM
  • JTASM-10-10-4
  • M10*1.25P-Ф4*10L
  • JTASM-10-10-2
  • M10*1.25P-Ф2*10L
  • JTASM-10-10-1
  • M10*1.25P-Ф1*10L
  • JTASM-10-30-4
  • M10*1.25P-Ф4*30L
  • JTASM-10-30-2
  • M10*1.25P-Ф2*30L
  • JTASM-10-30-1
  • M10*1.25P-Ф1*30L
  • JTASM-10-50-4
  • M10*1.25P-Ф4*50L
  • JTASM-10-50-2
  • M10*1.25P-Ф2*50L
  • JTASM-10-50-1
  • M10*1.25P-Ф1*50L
