超高壓-斜噴式高壓萬向噴嘴
產品分類
產品介紹
介紹

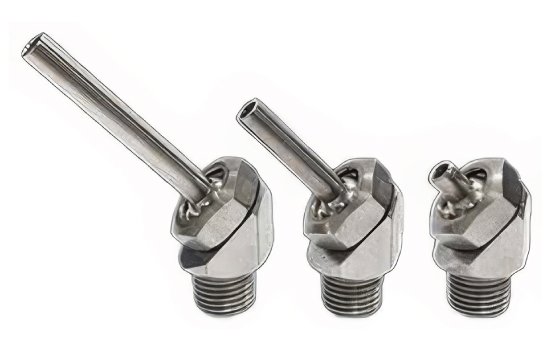

The Ultra High Pressure nozzle is designed to operate at pressures as high as 100 kgf/cm2.

SPECIFICATIONS - Inclined-Injection Type

For Inclined-Injection Ultra High Pressure Adjustable Nozzle

  1. Made of Stainless Steel
  2. Pressure Resistance：100kg/cm2
請左右滑動以下表格
共有 45 項產品
型號
規格
主要尺寸 (mm)
JTAP
  • JTAP-1/8-10-4-H19
  • 1/8''PT-Ф4*10L
VIEW
  • JTAP-1/8-10-2-H19
  • 1/8''PT-Ф2*10L
VIEW
  • JTAP-1/8-10-1-H19
  • 1/8''PT-Ф1*10L
VIEW
  • JTAP-1/8-30-4-H19
  • 1/8''PT-Ф4*30L
VIEW
  • JTAP-1/8-30-2-H19
  • 1/8''PT-Ф2*30L
VIEW

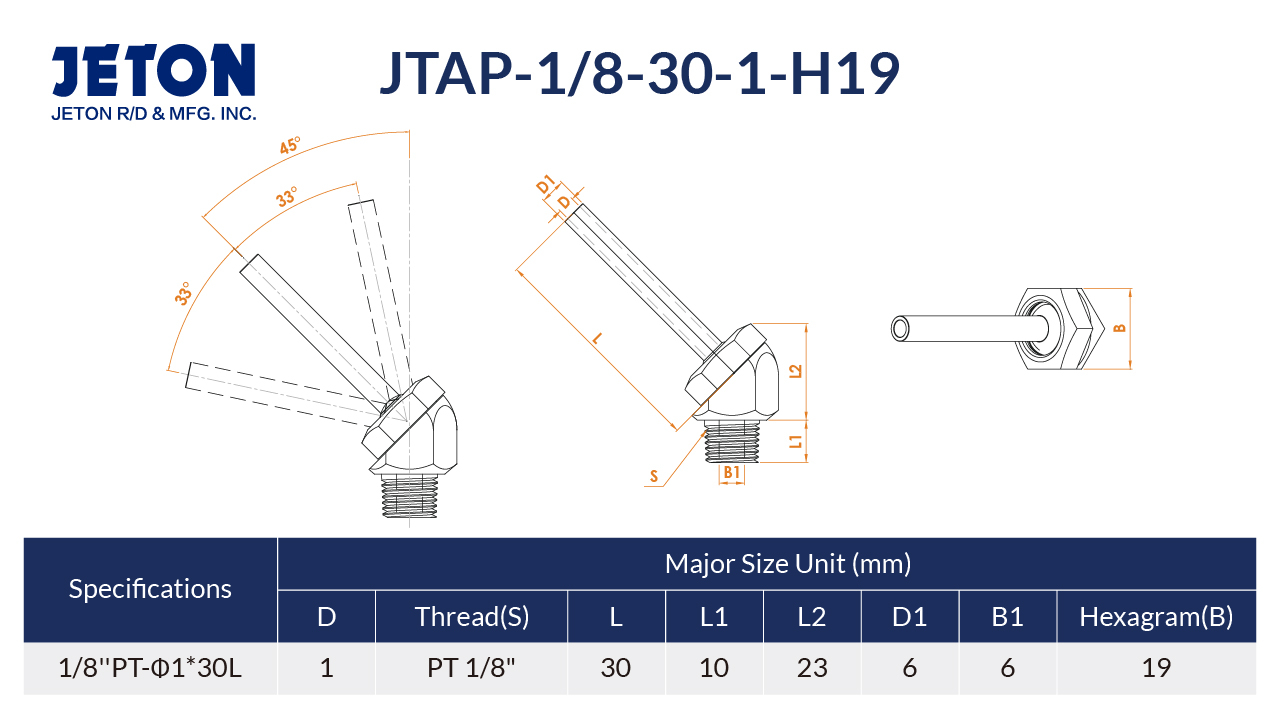

  • JTAP-1/8-30-1-H19
  • 1/8''PT-Ф1*30L
VIEW
  • JTAP-1/8-50-4-H19
  • 1/8''PT-Ф4*50L
VIEW
  • JTAP-1/8-50-2-H19
  • 1/8''PT-Ф2*50L
VIEW
  • JTAP-1/8-50-1-H19
  • 1/8''PT-Ф1*50L
VIEW
  • JTAP-1/4-10-4-H19
  • 1/4''PT-Ф4*10L
VIEW
  • JTAP-1/4-10-2-H19
  • 1/4''PT-Ф2*10L
VIEW
  • JTAP-1/4-10-1-H19
  • 1/4''PT-Ф1*10L
VIEW
  • JTAP-1/4-30-4-H19
  • 1/4''PT-Ф4*30L
VIEW
  • JTAP-1/4-30-2-H19
  • 1/4''PT-Ф2*30L
VIEW
  • JTAP-1/4-30-1-H19
  • 1/4''PT-Ф1*30L
VIEW
  • JTAP-1/4-50-4-H19
  • 1/4''PT-Ф4*50L
VIEW
  • JTAP-1/4-50-2-H19
  • 1/4''PT-Ф2*50L
VIEW
  • JTAP-1/4-50-1-H19
  • 1/4''PT-Ф1*50L
VIEW
JTAN
  • JTAN-1/8-10-4-H19
  • 1/8''NPT-Ф4*10L
VIEW
  • JTAN-1/8-10-2-H19
  • 1/8''NPT-Ф2*10L
VIEW
  • JTAN-1/8-10-1-H19
  • 1/8''NPT-Ф1*10L
VIEW
  • JTAN-1/8-30-4-H19
  • 1/8''NPT-Ф4*30L
VIEW
  • JTAN-1/8-30-2-H19
  • 1/8''NPT-Ф2*30L
VIEW
  • JTAN-1/8-30-1-H19
  • 1/8''NPT-Ф1*30L
VIEW
  • JTAN-1/8-50-4-H19
  • 1/8''NPT-Ф4*50L
VIEW
  • JTAN-1/8-50-2-H19
  • 1/8''NPT-Ф2*50L
VIEW
  • JTAN-1/8-50-1-H19
  • 1/8'N'PT-Ф1*50L
VIEW

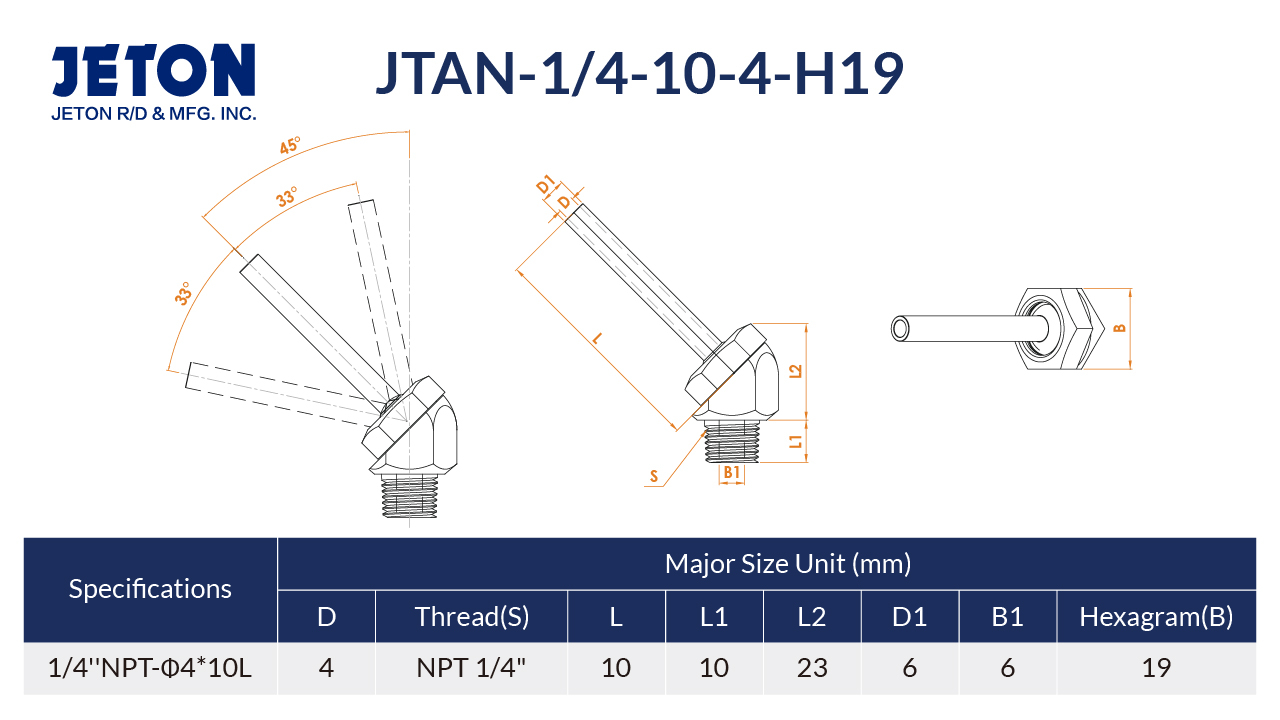

  • JTAN-1/4-10-4-H19
  • 1/4''NPT-Ф4*10L
VIEW
  • JTAN-1/4-10-2-H19
  • 1/4''NPT-Ф2*10L
VIEW
  • JTAN-1/4-10-1-H19
  • 1/4''NPT-Ф1*10L
VIEW
  • JTAN-1/4-30-4-H19
  • 1/4''NPT-Ф4*30L
VIEW
  • JTAN-1/4-30-2-H19
  • 1/4''NPT-Ф2*30L
VIEW
  • JTAN-1/4-30-1-H19
  • 1/4''NPT-Ф1*30L
VIEW
  • JTAN-1/4-50-4-H19
  • 1/4''NPT-Ф4*50L
VIEW
  • JTAN-1/4-50-2-H19
  • 1/4''NPT-Ф2*50L
VIEW
  • JTAN-1/4-50-1-H19
  • 1/4''NPT-Ф1*50L
VIEW
JTAM
  • JTAM-10-10-4-H19
  • M10*1.25P-Ф4*10L
VIEW
  • JTAM-10-10-2-H19
  • M10*1.25P-Ф2*10L
VIEW
  • JTAM-10-10-1-H19
  • M10*1.25P-Ф1*10L
VIEW
  • JTAM-10-30-4-H19
  • M10*1.25P-Ф4*30L
VIEW
  • JTAM-10-30-2-H19
  • M10*1.25P-Ф2*30L
VIEW
  • JTAM-10-30-1-H19
  • M10*1.25P-Ф1*30L
VIEW
  • JTAM-10-50-4-H19
  • M10*1.25P-Ф4*50L
VIEW
  • JTAM-10-50-2-H19
  • M10*1.25P-Ф2*50L
VIEW
  • JTAM-10-50-1-H19
  • M10*1.25P-Ф1*50L
VIEW
