首頁360度斜噴式高壓萬向噴嘴
- Angle of nozzle can be freely regulated, coupled whit a good localization

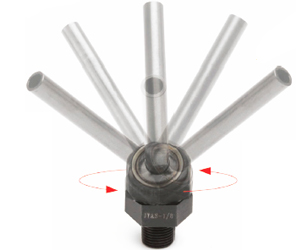

- Freely rotate in 360°
- Easily installed on the turret
- Easy adjustable direction
|
規格表
Go Back

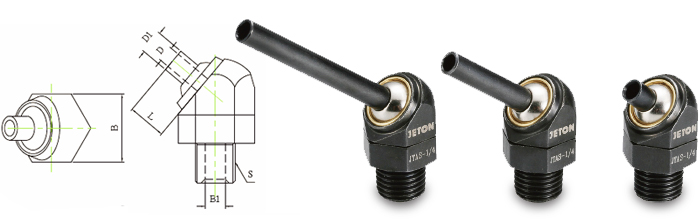

| 型號 | 規格 | 主要尺寸 單位(mm) | |||||
|---|---|---|---|---|---|---|---|
| D | 螺紋(S) | L | D1 | B1 | 六角面 (B) | ||
| JTASP-1/8-10 | 1/8"PT-Ф4*10L | 4 | PT 1/8" | 10 | 6 | 6 | 17 |
| JTASP-1/8-30 | 1/8"PT-Ф4*30L | 4 | PT 1/8" | 30 | 6 | 6 | 17 |
| JTASP-1/8-50 | 1/8"PT-Ф4*50L | 4 | PT 1/8" | 50 | 6 | 6 | 17 |
| JTASP-1/4-10 | 1/4"PT-Ф4*10L | 4 | PT 1/4" | 10 | 6 | 6 | 17 |
| JTASP-1/4-30 | 1/4"PT-Ф4*30L | 4 | PT 1/4" | 30 | 6 | 6 | 17 |
| JTASP-1/4-50 | 1/4"PT-Ф4*50L | 4 | PT 1/4" | 50 | 6 | 6 | 17 |
| JTASP-3/8-10 | 3/8"PT-Ф4*10L | 4 | PT 3/8" | 10 | 6 | 6 | 17 |
| JTASP-3/8-30 | 3/8"PT-Ф4*30L | 4 | PT 3/8" | 30 | 6 | 6 | 17 |
| JTASP-3/8-50 | 3/8"PT-Ф4*50L | 4 | PT 3/8" | 50 | 6 | 6 | 17 |
| 型號 | 規格 | 主要尺寸 單位(mm) | |||||
|---|---|---|---|---|---|---|---|
| D | 螺紋(S) | L | D1 | B1 | 六角面 (B) | ||
| JTASN-1/8-10 | 1/8"NPT-Ф4*10L | 4 | NPT 1/8" | 10 | 6 | 6 | 17 |
| JTASN-1/8-30 | 1/8"NPT-Ф4*30L | 4 | NPT 1/8" | 30 | 6 | 6 | 17 |
| JTASN-1/8-50 | 1/8"NPT-Ф4*50L | 4 | NPT 1/8" | 50 | 6 | 6 | 17 |
| JTASN-1/4-10 | 1/4"NPT-Ф4*10L | 4 | NPT 1/4" | 10 | 6 | 6 | 17 |
| JTASN-1/4-30 | 1/4"NPT-Ф4*30L | 4 | NPT 1/4" | 30 | 6 | 6 | 17 |
| JTASN-1/4-50 | 1/4"NPT-Ф4*50L | 4 | NPT 1/4" | 50 | 6 | 6 | 17 |
| JTASN-3/8-10 | 3/8"NPT-Ф4*10L | 4 | NPT 3/8" | 10 | 6 | 6 | 17 |
| JTASN-3/8-30 | 3/8"NPT-Ф4*30L | 4 | NPT 3/8" | 30 | 6 | 6 | 17 |
| JTASN-3/8-50 | 3/8"NPT-Ф4*50L | 4 | NPT 3/8" | 50 | 6 | 6 | 17 |
| 型號 | 規格 | 主要尺寸 單位(mm) | |||||
|---|---|---|---|---|---|---|---|
| D | 螺紋(S) | L | D1 | B1 | 六角面 (B) | ||
| JTASM-10-10 | M10*1.25P-Ф4*10L | 4 | M10*1.25P | 10 | 6 | 6 | 17 |
| JTASM-10-30 | M10*1.25P-Ф4*30L | 4 | M10*1.25P | 30 | 6 | 6 | 17 |
| JTASM-10-50 | M10*1.25P-Ф4*50L | 4 | M10*1.25P | 50 | 6 | 6 | 17 |
